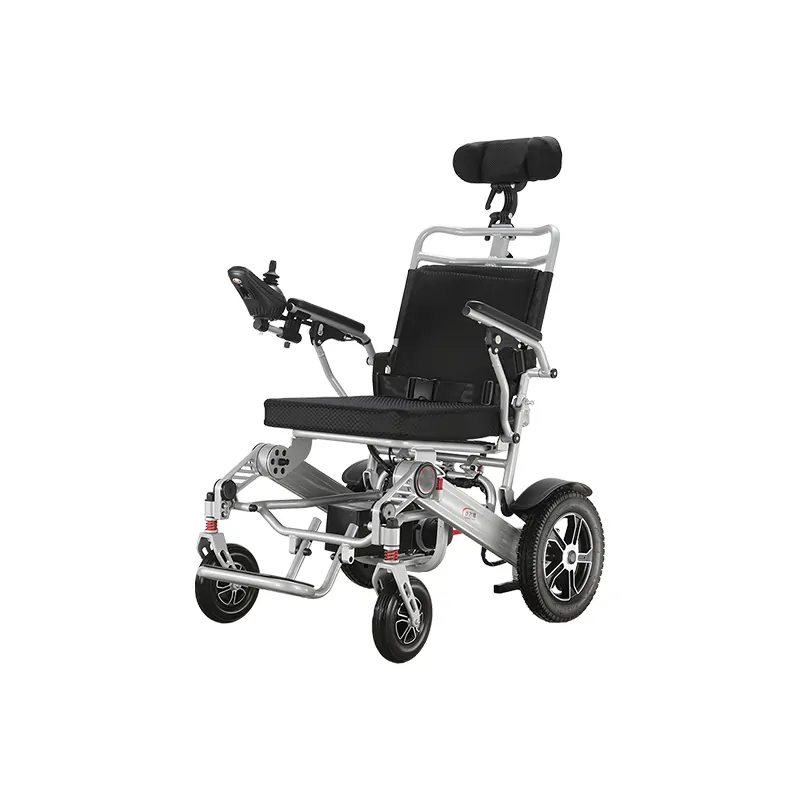

XFGW25-203AB Reclining Backrest Folding Electric Wheelchair for Elderly
50 Reviews
Share to:
XFGW25-203AB Frame: Aluminium Alloy Motor:24V/250W*2 Brush or Brushless Battery: 24V /10Ah/12Ah/13Ah( 1 or 2 optional) Automatic adjust backrest angel according to your requirements
The electric wheelchair can be also used manually, which makes it easy for use with carers. The power chair switches between power mode and manual mode with the use of a simple clutch system and how to use the wheelchair which is showed in the video.
XFGW25-203AB Reclining Backrest Folding Electric WheelchaiThe importance of using Reclinable Folding Power Wheelchair Adjustable Backrest Electric Wheelchair
The Angle of backrest can be adjusted by controllerelectric wheelchair power wheelchair
Electromagnetic brake electric wheelchair power wheelchair
How can we use Adjustable Backrest Electric WheelchairUsing Adjustable Backrest Electric Wheelchair is straight forward and designed to provide users with a customized and comfortable seating experience. Here's how you can use it effectively:ConclusionOverall, the use of a portable electric wheelchair offers a multitude of advantages, from promoting independence and comfort to enhancing the overall quality of life for individuals with limited mobility. It provides a means for them to lead more active, fulfilling lives and participate more fully in society.
XFGW25-203AB Reclining Backrest Folding Electric WheelchaiThe importance of using Reclinable Folding Power Wheelchair Adjustable Backrest Electric Wheelchair
The Angle of backrest can be adjusted by controllerelectric wheelchair power wheelchair
Electromagnetic brake electric wheelchair power wheelchair
How can we use Adjustable Backrest Electric WheelchairUsing Adjustable Backrest Electric Wheelchair is straight forward and designed to provide users with a customized and comfortable seating experience. Here's how you can use it effectively:ConclusionOverall, the use of a portable electric wheelchair offers a multitude of advantages, from promoting independence and comfort to enhancing the overall quality of life for individuals with limited mobility. It provides a means for them to lead more active, fulfilling lives and participate more fully in society.
Model
XFGW25-203AB
Frame
Aluminium alloy
Motor
24V/250W*2 Brushless /Brush
Controller
Joystick (Brush/Brushless)
Battery
24V/10AH 12Ah /13AHlithium battery
Charger
24V 2A/3A
Charging time
4-6h
Driving distance
Up to 15kms
Weight capacity
120kgs
Mini turning radius
910mm
Climbing ability
9°
Forward speed
Up to 6km/h
Backward speed
Up to 2km/h
Front wheel
8inch PU solid
Rear wheel
12 inch Rubber pneumatic
Anti-tip wheel
52*15mm Nylon
Seat
W450-510*D450*T7mm
Product size
1070*645*1260mm(with headrest)
Packing size
650*420*800mm
N.W(without battery)
28.5kgs
Battery weight
2kgs(10Ah)
2.2kgs(12Ah)
G.W.
35kgs(24V 12Ah)
20GP
136pcs
40HQ
324pcs
